MODERA 9
Cod. OA-570

MODERA 9 is a hammam system that controls humidity and temperature through misting nozzles positioned above the benches in the steam room. It operates automatically via a sensor that monitors key parameters, or manually using a control panel—ideal for rinsing after treatments. The experience is enhanced by an aromatherapy system that fills the space with fragrant essences, promoting complete well-being.

DESCRIPTION

MODERA 9 is the technological heart of the hammam, designed to transform every treatment into an immersive, multisensory experience. Gentle misting nozzles positioned above the benches regulate humidity and temperature in perfect harmony, either automatically through an intelligent sensor or manually via a control panel. After a scrub or savonage, the fine mist refreshes and revitalizes. As steam dances through the air, aromatic essences gently diffuse, wrapping the senses in a cocoon of pure well-being. With MODERA 9, the steam ritual becomes a true emotion.

Functions

Technical info

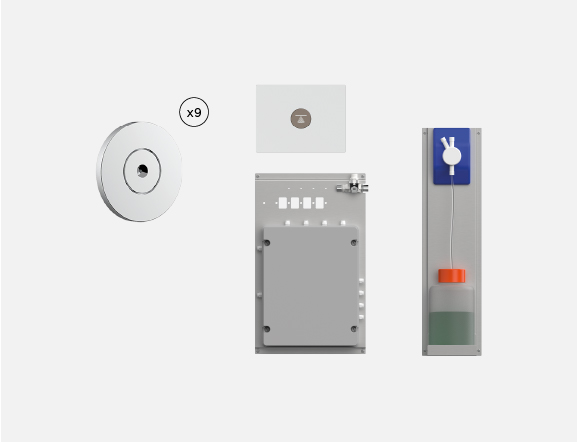

9 round recessed ceiling jets, Ø50 mm.

Technical specifications:
Minimum water flow rate: 12 l/min
Minimum required pressure: 2 bar
Water inlet: 1/2” inch

Available in versions for installation on EPS panels and suspended ceilings.

Control unit

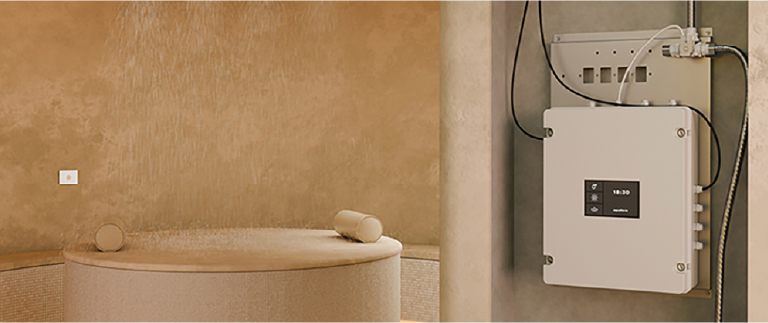

Pre-wired control panel with stainless steel support for installation in a dedicated technical compartment. Equipped with a user interface featuring a display for parameter adjustment and 12V power supply. Includes humidity and temperature sensor.

Technical specifications:
Electrical supply: 230 V
Power consumption: 100 W
Water inlet: 3/4" M
Dimensions: 360 × 555 × 149.5 mm

Optional included

Support frame with integrated aroma pump, complete with mint essence tanks.

Note: On request, MODERA 9 is also available in simplified versions or without optional features.

The integrated aromatherapy system in MODERA 9 enhances the hammam atmosphere with delicate scented essences, turning steam into a vehicle of emotion. Each breath becomes a sensory journey as the fragrances slowly diffuse into the air, enveloping body and mind in a cloud of well-being, stimulating the senses and deepening the feeling of relaxation. A subtle olfactory touch that makes every treatment a unique and revitalizing experience.

Scenarios and programs

Automatic Mode
Thanks to an intelligent sensor, the system continuously monitors the temperature and humidity within the environment. When levels drop below the ideal threshold, the misting nozzles activate automatically, restoring balance and ensuring a consistently optimal microclimate,without the need for manual intervention.

Manual Mode
Activated via a convenient control panel, this function allows the nozzles to be operated at any time, making it ideal for rinsing after treatments such as scrubs or savonage. A flexible solution that puts control directly in the hands of the operator or guest, offering a smooth and personalized experience.
