Kneipp path with sixteen individual nozzles, configured with two different types of jets and an integrated chromotherapy system. The nozzles can be activated in pairs, with eight warm misting jets and eight cold atomizing jets, ensuring effective thermal alternation in accordance with the Kneipp method. Complete with electronic control unit and activation control panel for automatic program start.
DESCRIPTION
VITALIS Kneipp Path is the modern evolution of classic Kneipp hydrotherapy, redesigned as a compact, sustainable solution ideal for contemporary wellness centers and spas.
By alternating finely tuned warm mist jets and cool atomized water sprays, VITALIS delivers the same therapeutic benefits of the original Kneipp method without the need for immersion tubs.
This revitalizing experience is enhanced by integrated LED chromotherapy: red lights energize the body, while blue lights promote deep relaxation, creating a perfect balance between physical stimulation and sensory wellness.
VITALIS is a rejuvenating wellness journey that boosts circulation, invigorates the body, and leaves a lasting sensation of vitality.
Functions
Technical info

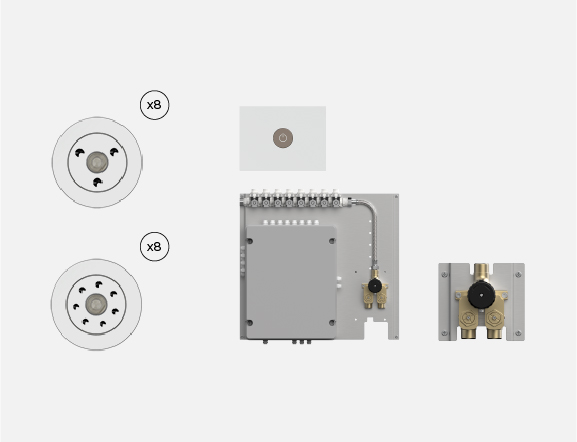

No. 16 round wall-mounted jets, Ø 85 mm, with integrated RGBW LED.
Technical specifications
Minimum water flow: 12 l/min
Minimum required pressure: 2 bar (dynamic)
Water supply connection: 1/2” inch
Recessed depth: 55/68 mm
Control unit
Pre-wired control unit with stainless steel support, designed for installation in the technical compartment. Equipped with a user interface featuring a display for parameter adjustment, manual thermostatic controls for preset temperature regulation, and 12V power supply. Supplied with a control panel featuring a single stainless steel super mirror-finish button.
Technical specifications
Power supply: 230 V
Power consumption: 100 W
Water inlet: 1/2” male
Dimensions: 525 x 500 x 149.5 mm
Optional included
On request, it is possible to integrate a button for activating the reverse path (Wayback)
Scenarios and programs
Button 1: P-PATH KNEIPP Program Ying Yang
JETS

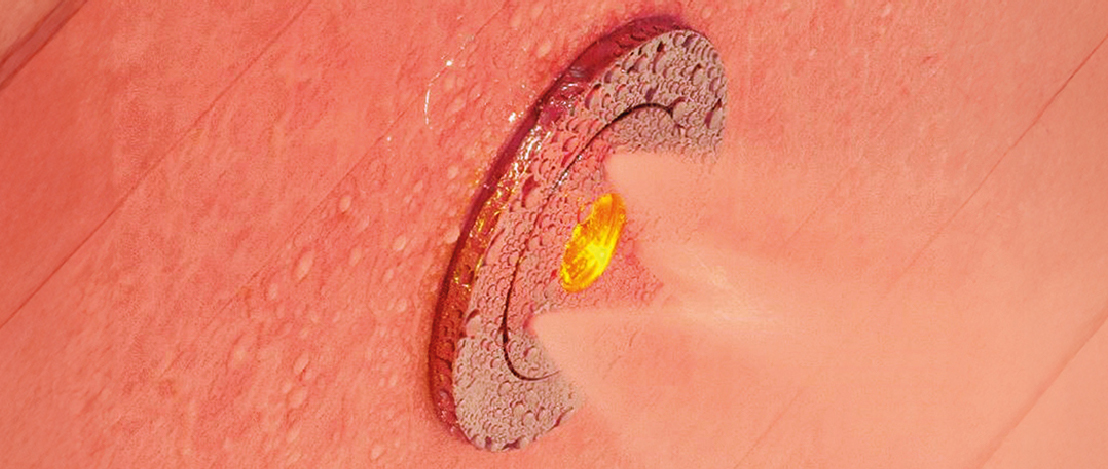

The nebulized jet slips in the environment, wrapping the body in a cosy and regenerating cloud of water.
By reducing the water into tiny particles, the atomized jet gives a refreshing and relaxing feeling of wellbeing.
FINISHES
CHROME
BRUSHED
MATT WHITE
BLACK MATT
GOLD
GOLD BRUSHED
GUN METAL
GUN METAL BRUSHED
COPPER BRONZE
COPPER BRONZE BRUSHED
PROGRAM
The VITALIS Kneipp paths offer a dynamic experience, combining alternating hot and cold water jets with the use of chromotherapy.
YING YANG
The Ying Yang program creates a dynamic journey within the SPA through the alternation of hot and cold jets, aimed at stimulating circulation and strengthening the immune system. The combined effect of vasodilation and vasoconstriction promotes microcirculation, improves oxygen delivery to tissues, and helps relax both body and mind.
