PLANTA 85 is a wellness system specifically designed for legs and feet. It features four side jets with a massaging function and integrated chromotherapy, ideal for footbath treatments.
The system includes an electronic control unit and activation panel for managing two scenarios:hot and cold and comes with a dedicated Kneipp therapy program for a revitalizing and stimulating experience.
DESCRIPTION
PLANTA 85 is a system designed to provide a genuine wellness experience for legs and feet.
The four massaging side jets transform each foot bath into a moment of deep relaxation and lightness. Equipped with an electronic control unit and an intuitive keypad, it allows users to choose between warm and cold scenarios to stimulate the senses and release tension. The program inspired by Kneipp therapy completes the treatment, offering a revitalizing experience that enhances circulation and provides a pleasant sensation of renewed energy and vitality.
Functions
Technical info

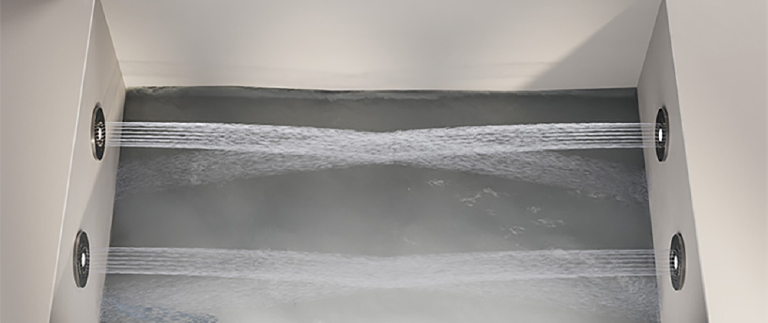

No. 4 round wall jets Ø 85 mm with integrated RGBW LED lighting.
Technical Specifications
Minimum water flow rate: 12 l/min
Minimum required pressure: 2 dynamic bar
Water supply connection: 1/2” inch
Recessed depth: 55–68 mm

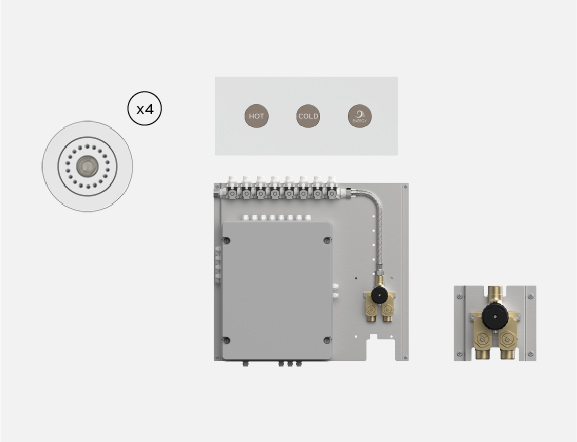

Control unit
Pre-wired control panel with stainless steel support, designed for installation in the technical compartment.
Equipped with a user interface featuring a display for parameter adjustment, manual thermostatic controls for preset temperature regulation, and 12V power supply. Includes a keypad with a single button in super mirror stainless steel.
Technical Specifications
Power supply: 230 V
Power consumption: 100 W
Water inlet: 1/2 inch male
Dimensions: 525 x 500 x 149.5 mm
Optional included
Custom-made footbath basin in Corian can be provided upon request.
Scenarios and programs
Button 1: SC-HOT – Warming Massage
Button 2: SC-COLD – Cooling Massage
Button 3: P-ENERGY – Energy Program
JETS
A targeted jet that works laterally on the body, ideal for relieving muscle tension and providing a deep, enveloping massage
FINISHES
CHROME
BRUSHED
MATT WHITE
BLACK MATT
GOLD
GOLD BRUSHED
GUN METAL
GUN METAL BRUSHED
COPPER BRONZE
COPPER BRONZE BRUSHED
SCENARIOS AND PROGRAMS
PLANTA 85 offers two thermal scenarios: warm and cold, along with a Kneipp program to stimulate circulation and promote overall well-being.
WARMING MASSAGE
The Warming Massage scenario of Planta gently heats and envelops the feet and calves, promoting relaxation, relief from muscle stiffness, improved circulation, and reduced stress.
FREEZING MASSAGE
The Freezing Massage scenario of Planta tones the feet and calves using cold water, providing pain relief, reduced swelling, improved skin tone, and stimulation of the lymphatic system.
ENERGY
The Energy Program of Planta is a foot wellness treatment that alternates warm and cold water, providing a gentle massage that stimulates circulation and reduces muscle tension, promoting relaxation and relief.
For more information or for your custom project
