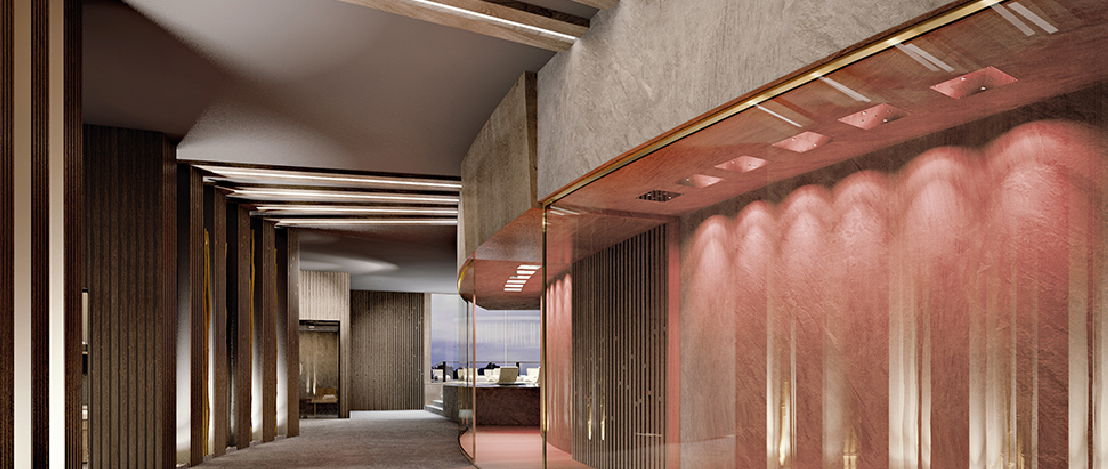

Emotional tunnel with six rectangular shower systems, each equipped with a different type of water jet and integrated chromotherapy. Complete with an electronic control unit and activation panel to start the wellness pathway. Available with optional aromatherapy for automatic diffusion of water-based essences.
DESCRIPTION
The Water Paradise, a SPA pathway featuring six emotional showers, offers a multisensory experience that combines six different water jets with chromotherapy for a complete wellness moment. Managed by an electronic control unit with sequential activation, it is available with optional aromatherapy to create an immersive and customizable atmosphere.
Functions
Technical info

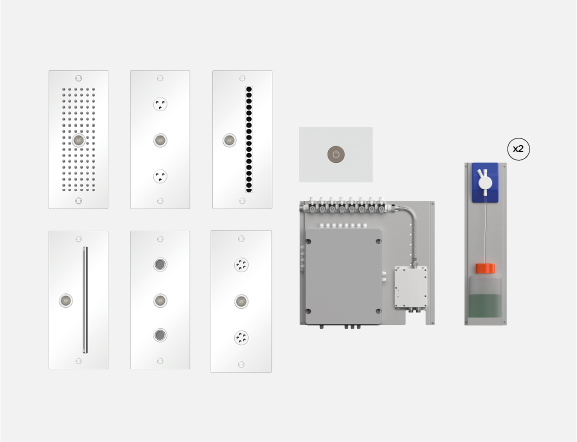

No. 6 rectangular ceiling-mounted recessed shower heads, 350 x 150 mm, with 1 RGBW LEDs for chromotherapy.
Technical specifications
Minimum water flow rate: 20 l/min
Minimum required pressure: 3 dynamic bar
Ceiling recess depth: 150 mm
Water inlet: 1/2” inch
Material: 316L super mirror stainless steel
Control unit
Pre-wired control panel with stainless steel support, designed for installation in a technical compartment. Equipped with a user interface featuring a display for parameter adjustment, an electronic mixer for automatic temperature control, and 12V power supply. Includes a control panel with 1 button in super mirror stainless steel.
Technical specifications
Power supply: 230 V
Power consumption: 100 W
Water inlet: 1/2 inch male
Dimensions: 525 x 500 x 149.5 mm
Optional included
Two support frames with integrated aroma pumps, complete with tanks for mint and citrus essences.
Note: On request, versions of SPATIUM LIBERA with reduced features or without optional components are available.
It is also possible to integrate a button for activating the reverse pathway (Wayback).
The SPATIUM 35 emotuional tunnel transforms into a true Water Paradise—a multisensory journey that stimulates both body and mind. Mint and citrus water-based essences, diffused through integrated pumps, fill the space with a cloud of freshness and vitality.
From above, six transducers positioned within the shower systems deliver immersive sounds via an audio system with a micro SD card, creating a fully enveloping sound environment.
Water, light, aroma, and sound blend in perfect harmony, offering a total wellness experience that is customizable and deeply engaging.
Scenarios and programs
Button 1: P-PATH TUNNEL Program Promenade
JETS
Delicate on the skin, the rain jet tickles it causing a pleasant, stimulating and relaxing sensation.
The nebulized jet slips in the environment, wrapping the body in a cosy and regenerating cloud of water.
The powerful gesture of the waterfall absorbs us and, through the skin contact, communicates its energizing force to the whole body.
Water and air mix and enhance each other, massaging the body and inducing creativity and dynamism.
By reducing the water into tiny particles, the atomized jet gives a refreshing and relaxing feeling of wellbeing.
The mix between tropical and aerated jets creates the effect of a dense rain which, descending, relieves and reduces muscular tension.
FINISHES
CHROME
BRUSHED
MATT WHITE
BLACK MATT
GOLD
GOLD BRUSHED
GUN METAL
GUN METAL BRUSHED
COPPER BRONZE
COPPER BRONZE BRUSHED
PROMENADE
The Promenade program of the emotional tunnel offers a complete multisensory experience, alternating between gentle and intense water jets to stimulate a range of sensations. Chromotherapy enhances the atmosphere by adapting to the different phases of the journey, while carefully selected aromas enrich the environment and positively influence the mood. Completing the experience is a harmonious soundtrack with natural sounds and soothing melodies, fully immersing the guest in a sensory journey that engages all the senses.
